Key Features

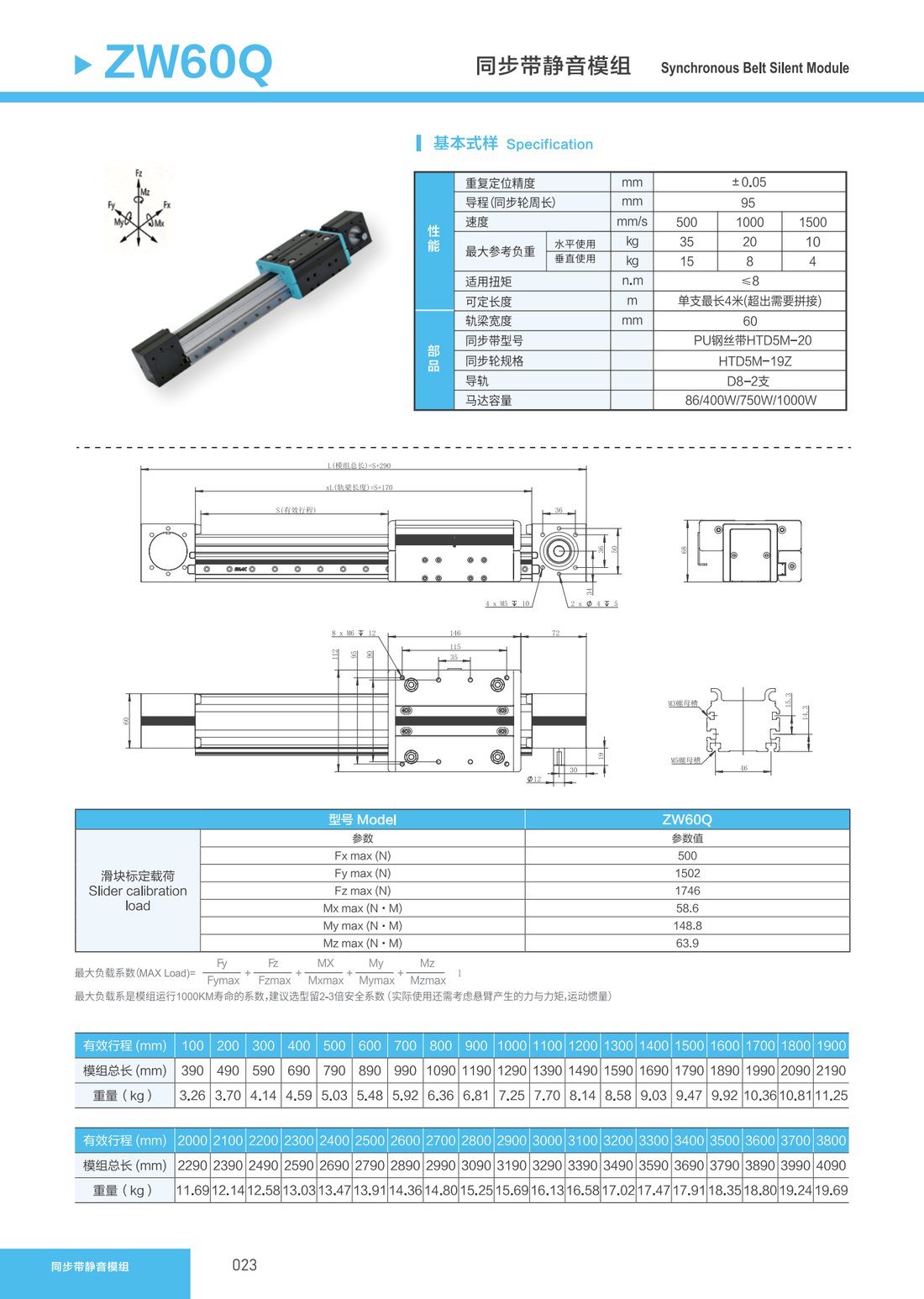

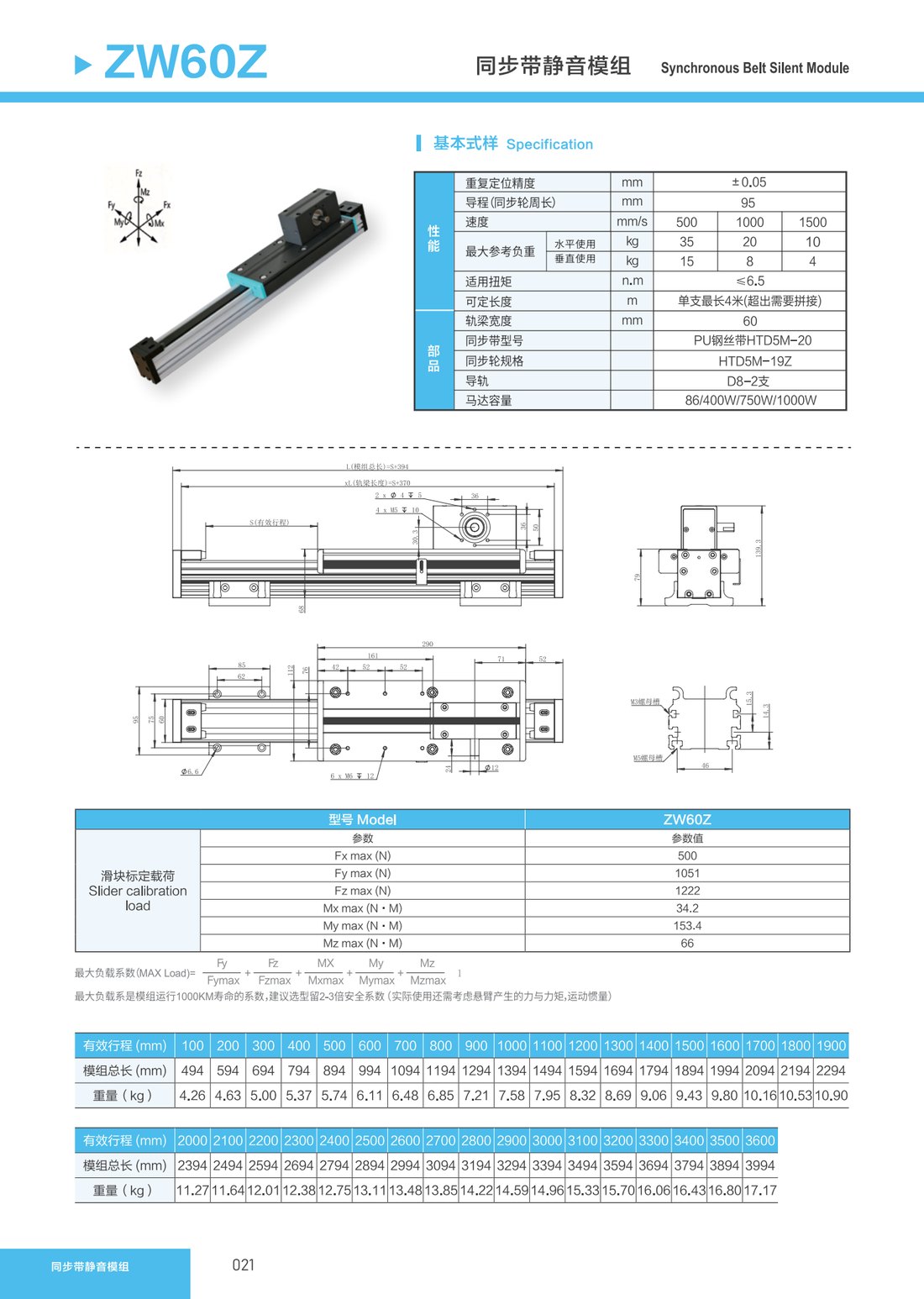

- Repeatability: ±0.05 mm. ZW-Z is a self-moving configuration for Z-axis lifting and vertical motion; ZW-Q adds side guide-rail support for higher load capacity, making it suitable for offset-load or heavier linear-motion applications.
- Belt lead options include 75 mm, 95 mm, and 190 mm.
- Single modules from 50 to 3800 mm; longer strokes can be custom-spliced.

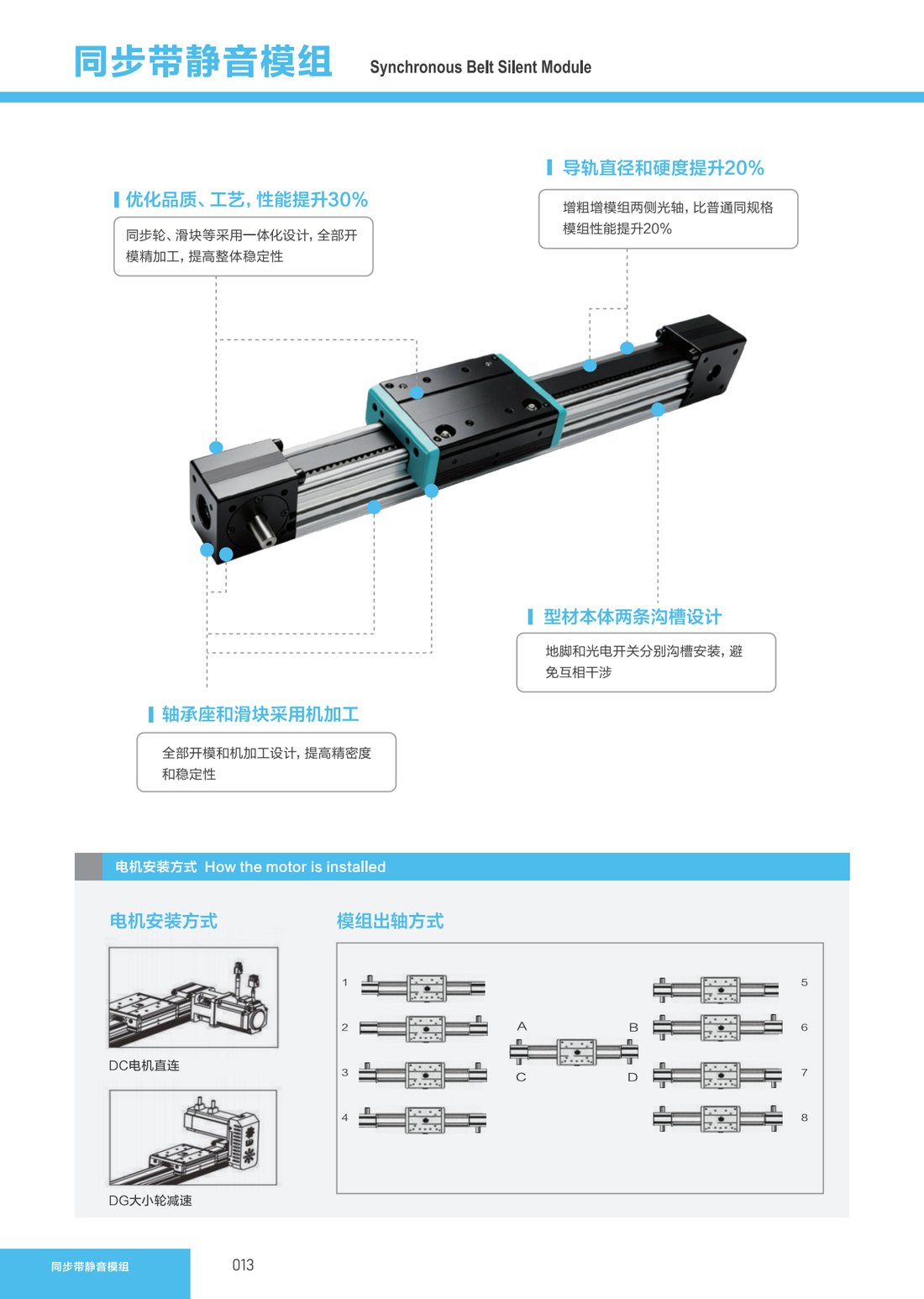

- Motor installation supports DC direct coupling and DG pulley reduction.
- Dual-groove profile separates foot mounting and photoelectric switch installation.
- Machined bearing seats and sliders improve precision and stability.
